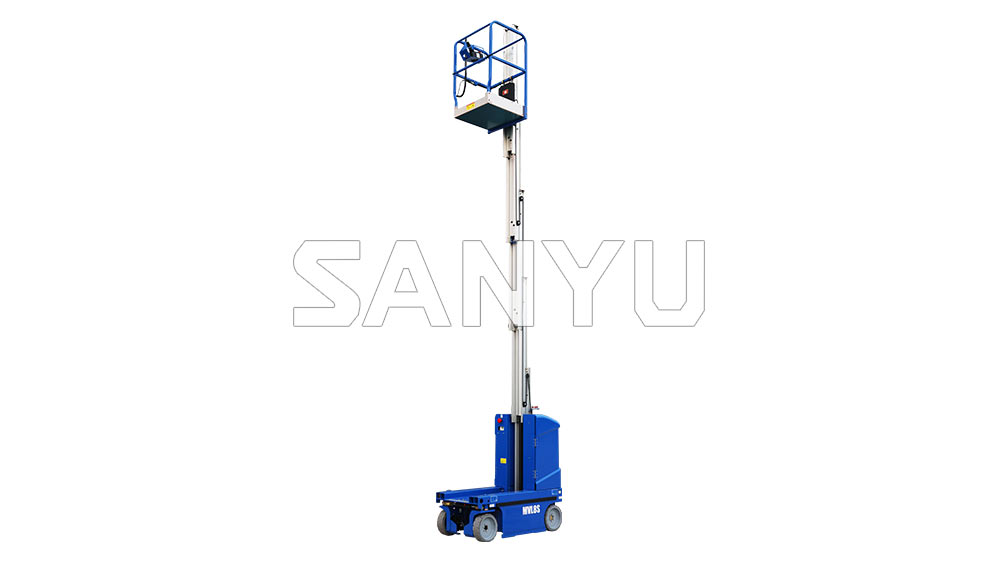

MVL9.5S
Proportional Controls、Emergency Stopping System、Automatic Pothole Protection、Emergency Lower Button、Drivable at Full Height、Cylinder Holding Valve、Non-Marking Tyres、Onboard Diagnostic System、Automatic Braking System、Swing Open Cover
|
MODEL
|
MVL9.5S
|
|---|---|
|
Working height, max (indoor)
|
9.50m
|
|
Working height, max (outdoor)
|
8.00m
|
|
Platform height, max (indoor)
|
7.50m
|
|
Platform height, max (outdoor)
|
6.00m
|
|
Loading capacity
|
125kg
|
|
Occupants
|
1
|
|
Overall length
|
1.40m
|
|
Overall width
|
0.78m
|
|
Overall height
|
1.99m
|
|
Platform dimension
|
0.68×0.67m
|
|
Platform extension length
|
0.5m
|
|
Wheelbase
|
1.075m
|
|
Turning radius
|
0
|
|
Travel speed (stowed)
|
3km/h
|
|
Travel speed (raised)
|
0.8km/h
|
|
Up/Down speed
|
28/22sec
|
|
Working slope, max
|
X-3° Y-1.5°
|
|
Gradeability
|
25%
|
|
Tyres
|
Φ305×100mm
|
|
Driving motor
|
2×24VDC/0.5kW
|
|
Lifting motor
|
24VDC/2kW
|
|
Battery
|
2×12V/100Ah
|
|
Charger
|
24V/180A
|
|
Weight
|
1280kg
|
