AMWP13-7100

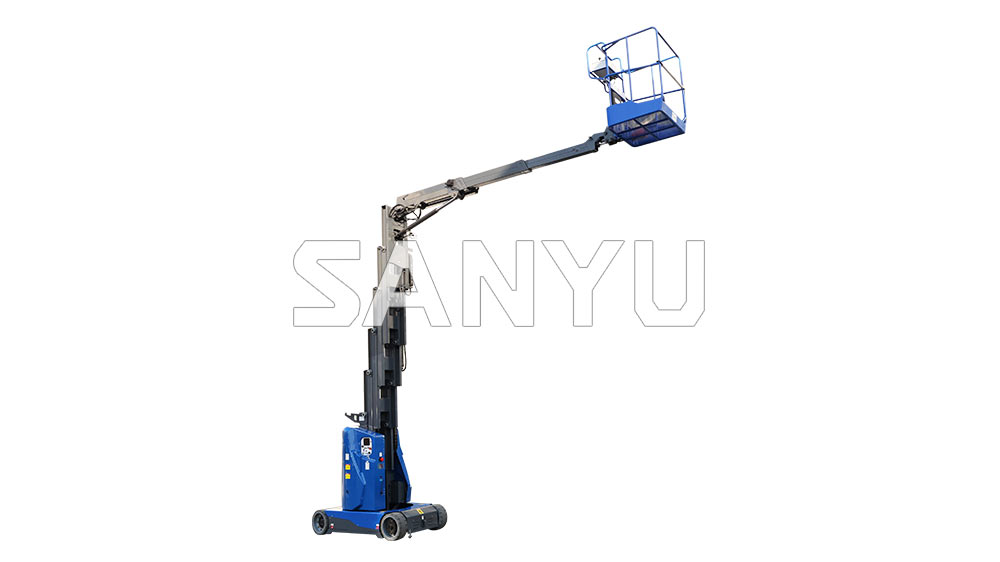

AMWP13-7100 is a battery-powered vertical mast lift. It has a maximum horizontal reach of 6.05 meters, enabling flexible operation in narrow spaces while clearing obstacles.
| MODEL | AMWP13-7100 |
|---|---|
|
Working height, max
|
12.65m
|
|
Platform height, max
|
10.65m
|
|
Horizontal outreach, max
|
6.05m
|
|
Overall length
|
3.72m
|
|
Overall width
|
1.20m
|
|
Overall height (stowed)
|
1.98m
|
|
Platform dimension
|
0.80×0.93m
|
|
Ground clearance (stowed)
|
80mm
|
|
Ground clearance (raised)
|
80mm
|
|
Wheelbase
|
1.55m
|
|
Loading capacity
|
200kg
|
|
Occupants
|
2
|
|
Turret rotation
|
352°
|
|
Working slope, max
|
X-2° Y-2°
|
|
Travel speed (stowed)
|
3.60km/h
|
|
Travel speed (raised)
|
0.70km/h
|
|
Gradeability
|
30%
|
|
Tyres
|
Φ406×178mm
|
|
Driving motor
|
32V/3.3kW
|
|
Lifting motor
|
48V/3kW
|
|
Battery
|
48V/260Ah
|
|
Charger
|
48V/35A
|
|
Weight
|
4980kg
|
